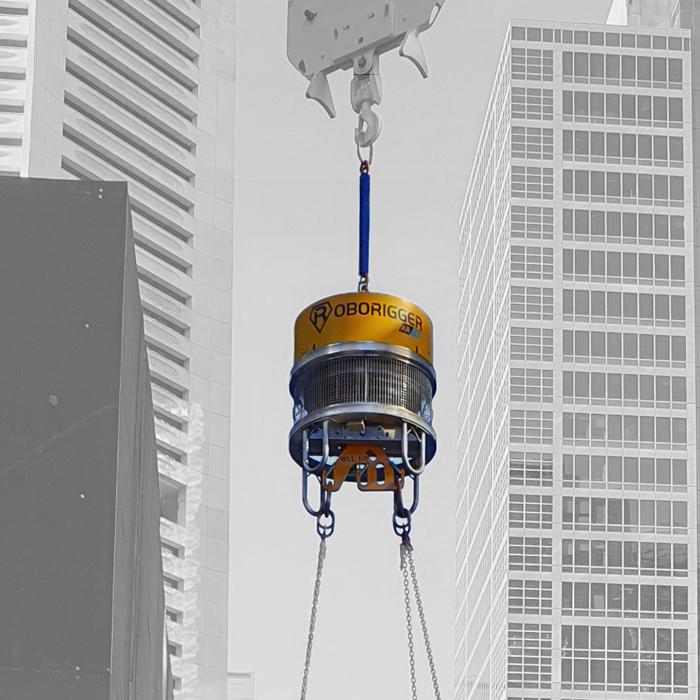

The ROBORIGGER AR15 is a load controlling system with a 15t WLL capacity. Roboriggers add value to your project by increasing lifting efficiency of the crane and its team an average of 15%. This is achieved by allowing orientation to be done whilst the load is in transit, there being no need to attach and remove tag lines, and having the ability to work efficiently at higher wind speeds. Erection of steelwork at height can be done using one or two fewer personnel as you don’t need personnel on tag lines to do the orientation. Roborigger has a payback of greater than three times its cost.
Using Roborigger allows orienting and landing lifted loads to be undertaken without tag lines and the need for people to be in the vicinity of the load. It also prevents loads from spinning and hitting structure which is a major cause of dropped objects. The safety benefits are significant.
KEY FEATURES:
• Integrated load cell
• Integrated IP camera capable of providing video
feed and still pictures of load
• 3g/4g modem to provide internet connectivity
• Wi-Fi for transmission of video for use as crane
camera or for remote monitoring
• Wireless remote using off the shelf 2.4 GHz or
433MHz crane controller
• 12 hour+ battery pack. Optional 24x7
• Onboard battery charger: input AC240V 10A
single phase.
• Remote monitoring using ROBORIGGER IoT
website
SPECIFICATIONS:
WLL: 15 t
PROOF LOADING: 30 t
Module Size: 1.4 (diam) x 2.03 (height)
Operating temp: 0 to +55C
Weight: 1,050 kg
Design : AS1418 class U3 loading Q3
Fatigue life 100,000 cycles spectrum Kp=1
Design approval - Lloyds Register. CE approved
